Technical Parameters

Model	QA32-8B	QA32-10B	QA32-12B	QA32-14B
Pressure	360KN	500KN	900KN	1200KN
Mold stroke	27MM	30MM	36MM	36MM
Stamping speed	30 time/min	30 time/min	30 time/min	25 time/min
Total power	2.2KW	3.0KW	4.0KW	5.5KW
Weight	450KG	710KG	950KG	1300KG
Form factor	900*600*1100mm	900*600*1200mm	700*1100*1450mm	740*1180*1550mm
Package size	1000*680*1240mm	1000*680*1460mm	750*1200*1600mm	830*1250*1680mm
Cut corner steel	MAX 75*75*8mm	MAX 100*100*10mm	MAX 125*125*12mm	MAX 150*150*14mm
Grooved steel	MAX 8#	MAX 12#	MAX 16#	MAX 20#
Cut flat steel	MAX 180*8mm	MAX 230*10mm	MAX 330*12mm	MAX 330*14mm
Punching thickness	MAX 8mm	MAX 10mm	MAX 12mm	MAX 14mm
Cut round bars	MAXΦ30mm	MAXΦ35mm	MAXΦ40mm	MAXΦ40mm
Voltage	220V/380V/400V/415V
Voltage frequency	50/60HZ
HS Code	8462490000

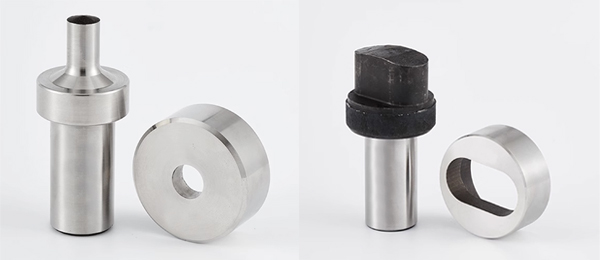

Spare and Accessories

Round holes(mm)						Long holes(mm)
8	9	10	11	12	13	8*30	9*30	10*30	11*30	12*30	13*30
14	15	16	17	18	19	14*30	15*30	16*30	17*30	18*30	19*30
20	21	22	23	24	25	20*30	21*30	22*30	23*30	24*30	25*30
26	27	28	29	30		26*30	27*30	28*30	29*30	30*30
Can be customized according to customer requirements

FAQ

_{1.What about the payment term&price term?
As usual, we accept T/T as the payment term, and the price term FOB is ok.}

_{2.Are you a trading company or a factory?
Xingtai Hongyin Manufacturing Co., Ltd. is a manufacturer in Hebei Province, China. We specialize in punching and shearing machines and hoop bending machines for more than 10 years, and our high-quality products are welcomed by many countries.}

_{3.How do you make your price?
We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture.You will get competitive price and better quality.}

_{4.How about the packing?
Outside Package: Wooden packing case as export standard ; Inside Package: Stretch film.}

_{5. Whats the delivery time?
Usually, we will delivery the goods within 15-20 working days, but this is aim at 1-10 pieces products, if more quantity,} it depends.

_{6. Questions before quotation?
Thickness? Material? Size? Quantity? The more detailed the quote, the more accurate it will be. Thank you.}

_{7.what about our mechanical features?
(1) Compact structure and reasonable design
(2) Easy to install, operate and maintenance
(3) Low noise and good working condition
(4) Three-phase power supply, suitable for a wide range of applications
(5) Simple structure, easy to identify the cause of the failure, easy to repair and maintain}
